“Invigorate Your Performance”
Product Details

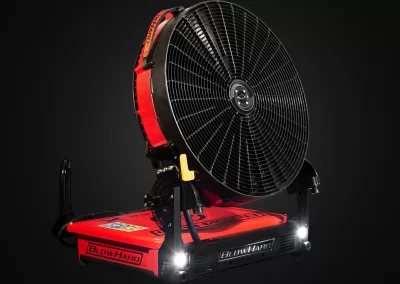

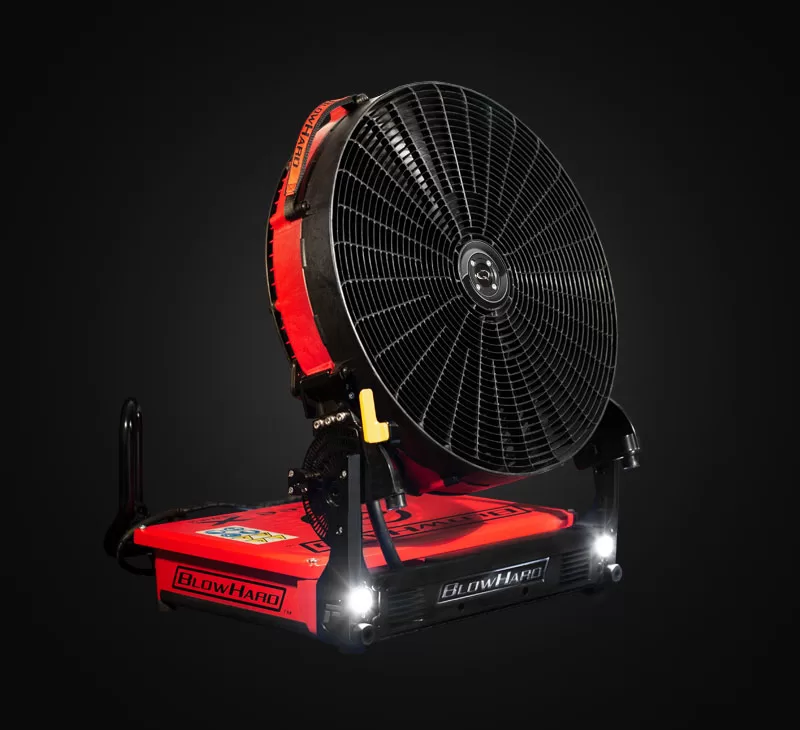

Keeping the same compact package as the original Quickee, Quickee Xtendo is an X-Series Smart fan designed to deliver Xtreme performance, that rivals even our own Commando fan! From a small job of clearing out smoke from burnt toast in a single level home, to pressurizing high-rise stairwells and ventilating medium sized warehouses, Quickee Xtendo is our most versatile fan to date! We’ve Xtended the runtime to 60 minutes, Xtended the battery life to 1000 full discharges, Xtended its battery capacity to 1110 Wh, and Xtended its performance to a phenomenal 14,540 CFM / 27,404 m3/h. No more need for gasoline-powered fans! Smart-Tec High-Flow Jet Technology: Ergo-Fold: Opti-Max:
Quickee Xtendo is the epitome of what our X-Series line represents-Xtreme technology and innovation to deliver no-nonsense serious tools for PPV and to move the industry forward.
Equipped with the Smart-Tec Battery Management System, dynamic Operator Interface, and Diagnostics screen, this fan makes owning and operating a BlowHard easy and low maintenance. As the user adjusts the power knob, the bright LCD screen displays quick, responsive, data such as Power Level, CFM, Thrust, and Remaining Battery Time in hours and minutes to give firefighters power and control over unpredictable and
ever-changing situations.
This BlowHard technology first developed for the Original Quickee and Commando, has been refined in the X-Series to accelerate the entrainment of air and expand the airstream more rapidly, allowing it to reach optimal airflow within the tighter space constraints firefighters face of real-world settings. Simply put: The X-Series High-Flow Jet finally enables PPV fans to reach their full performance within tighter distances that dominate modern firefighting environments.

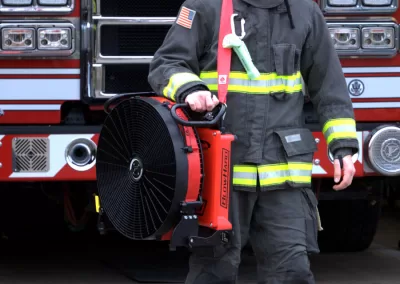

The weight of the fan is in the base, close to the body when carrying, therefore easy to maneuver. That weighted base also holds the fan solid on steep inclines and declines, even when on high power, as well as delivers a true 180 degree of operation.
Unique to BlowHard, the shroud and blade are designed to be as big as the entire footprint of the fan for a large airstream. Because every inch of space is optimized, we are able to engineer the smallest fans on the market while surpassing performance outputs of all other battery-operated brands on the market.
Specifications
| Max CFM |
14,540 AMCA Equivalent (24,704 m3/h) |
| Open Air Flow |
32,500 CFM (55,218 m3/h) |
| Runtime |
53 MIN @ 14,540 CFM (24,704 m3/h) |
| High-Flow Expansion Jet | Yes |
| Ingress Protection | IP-67 |
| Sound |
89dB @ 40in (1m) |
| Tilt | Ergo Fold 0 – 180 degrees |
| Lighting |
Horizontally Dispersed LED (~2000 Lumens) |
| Warranty | 2- year Full Warranty, plus 3-5 Year Sliding Warranty |
Measurements |
|
| Blade Size |
20.1” (536mm) |
| Size |
21.1” x 21” x 11.3” (536mm x 533mm x 287mm) |
| Weight |
53lbs (24kg) |
| Battery |
Li-Ion / 1100Wh |
| Charge Time |
0% >> 90% in 2 hours |
| Complete Charge Time |
Complete Charge Time – 3 hours. No Memory |
| Battery Cycle Life |
Up to 1000 Full Discharges |
| Dual-Powered |
Run on Battery or AC, Seamless Automatic Switching |
| Operator Interface |
YES. Displays Thrust, CFM, Battery Level, Remaining Battery Time |
Misting Ring
The Misting Ring is universal to all BlowHard Fans. Having a fast and easy magnetic set up and 8 nozzles blowing out cool mist, it is perfect for quick firefighter and civilian heat recovery.
Specifications
| Size | Weight | Nozzles | Flow Rate | Total Flow Rate |
| Ring Diameter 13 in | 1 kg / 2.3 lbs | 8 | 0.09 L/min per nozzle | 0.75 liters/min at 42.5 PSI / 3 bar |
| Ring + Connector Length: 17.5 in |
Key Features: The wide ring diameter places the nozzles in the airstream for optimal mist distribution.
Ducting
BlowHard Ducting is fan specific. Fitting snug around the shroud, the ducting makes it quick and easy to get fresh air into small, difficult to reach places. With its condensed, integrated case, deployment and pack up fast and easy!
Specifications
| Diameter | Length Deployed | Weight | Temp Rating |
| 12" | 9.5 m / 31 ft | 10.8 kg / 24 lbs | -20 C to 80 C / -4 F to 176 F |
| 16" | 9.5 m / 31 ft | 14.5 kg / 32 lbs | -20 C to 80 C / -4 F to 176 F |
Key Features: With reinforced PVC fabric of 650gsm and 55mm thick, this ducting is highly durable and abrasion resistant. The end coupling rings allow you to attach multiple units together to reach and even longer distance.
High-Flow Mister
The High-Flow Mister is universal to all BlowHard Fans. Super popular in Europe, the High-Flow Mister puts out a powerful 60L per minute wall of water to create a protective barrier between buildings to stop fire from jumping and spreading.
Specifications
| Nozzle + Connector Length | Hose Length | Weight | Nozzles | Flow Rate | Total Flow Rate |
| 8 in | 30 in | 2 lbs / 0.90 kg | 9 | 7.1 L/min per nozzle | 60 L/min at 100 PSI / 7 bar |
Key Features: The High-Flow Mister is universal to all BlowHard fans and is magnetic for a quick and easy set-up. It has an On/Off ball valve and comes with a flexible 30 in hose. With a 5/8 in / 16mm ID adaptable fitting, you can use your current system.
Wheel Kit
Need some help with ground maneuverability? The Quickee Xtendo wheel kit is a great option that expands in and out to either use or stay out of the way when you need to carry or store the fan.
Specifications
| Size of Fan with Wheel Kit | Weight of Fan with Wheel Kit |
| 23.1” x 21” x 11.8” (586mm x 533 x 300mm) | 25.85kg/57 lbs |
Key Features: Adding only just over 4 lbs to the overall weight, and only .5” of thickness and 2” of height, the wheel kit keeps the Quickee Xtendo light and ultra compact for maximum storage space on your truck
